Adtran – 5000- Multi-service Access and Aggregation, Series

  • Native Ethernet core
  • TDM, ATM and Ethernet network interfaces
  • Copper and fiber transport and access
  • Fully redundant, carrier-class design
  • Digital and metallic test access
  • Multiple network management capabilities (TL1, XML, SNMP, and Telnet) including full FCAPS support
  • ERPS and RPR Ethernet Ring support
  • Supported by ADTRAN AOE Service Management


Getting the Most Out of Your Network

With a pure Ethernet core, our Total Access 5000 (TA5000) Series is a 10Gbit/s fiber access platform that supports 10G Combo PON, GPON, XGS-PON, point-to-point, Active Ethernet and dedicated Carrier Ethernet services, among others. It easily scales to support even the most bandwidth-intensive applications. The TA5000 Series provides the bandwidth and Ethernet switching capabilities needed to deliver a highly profitable service offering and bridges the gap between existing and next-generation networks – like 10G PON.

The ADTRAN® Total Access® 5000 is a carrier class multi-service access and aggregation platform that bridges the gap between the existing and the next-generation networks. With a pure Ethernet core, the Total Access 5000 supports both legacy and emerging service interfaces over copper and fiber, easily scaling to support even the most bandwidth-intensive applications. The Total Access 5000 provides a clear migration path for traditional services, like voice, through its flexible network uplink options, including support for both TDM and VoIP switches. In addition to supporting both legacy and next-generation access interfaces, the Ethernet core of the Total Access 5000 provides a scalable and cost-optimized aggregation point in the network, with interfaces ranging from DS1 to 10 and 20 Gigabit Ethernet.

The Adtran Total Access 5000 series of products can be integrated from the CO to the remote terminals

Environmentally hardened, the Total Access 5000 is designed with the service provider in mind and is equally capable of deployment in central office, remote terminal or remote node locations. Instead of a traditional fixed backplane architecture, the Total Access 5000 provides a truly scalable architecture that is designed to migrate with the network, providing flexible copper and fiber termination options based on network applications. With the simple Multi-service Access and Aggregation Total Access 5000 change of a “personality module,” equipment obsolescence can be avoided, and network investments protected with a platform that is also physically capable of scaling to meet the network evolution, not only today but also tomorrow.

The Total Access 5000 supports a variety of access and line modules with supported applications including Broadband Digital Loop Carrier, Fiber-to-the-Home (FTTH), Fiber-to-the-Node (FTTN), Carrier Ethernet, Ethernet Aggregation, legacy business, and residential aggregation, as well as next-generation Optical Network Edge (ONE™) aggregation and transport. Integrated Ethernet transport options deliver flexible copper or fiber-based solution.

The Total Access 5000 supports a wide variety of management options. Transaction Language 1 (TL1) is used to communicate alarms with Telcordia’s NMA Operations Support System (OSS). An Ethernet 10Base-T, 10/100Base-T, or standard RS-232 DB-9 connector is used for Telnet access and connection to SNMP networks. Additionally, the Total Access 5000 is supported by ADTRAN Advanced Operational Environment (AOE), providing a user-friendly Graphical User Interface (GUI).

The Adtran Total Access 5000 is designed for deployment in 23-inch relay racks and has 22 access module slots.

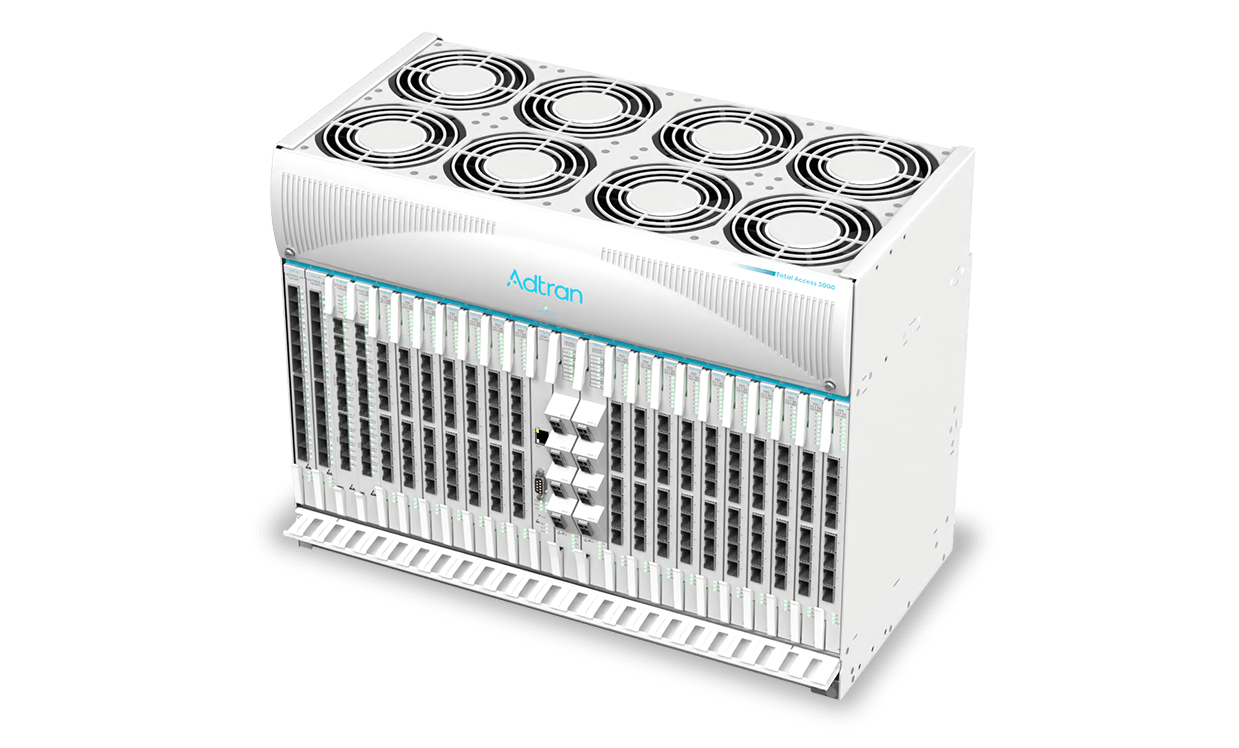

TA5000 (ANSI) – The Adtran Total Access 5000 10Gbit/s fiber access platform supports 20,000 subscribers and more than seven fiber access technologies. It easily scales to support even the most bandwidth-intensive applications in a 9RU form factor. In addition, the Total Access 5000 provides highly scalable, integrated aggregation utilizing multiple 10GbE, 40GbE, and 100GbE interfaces. Part number 1187001F2.

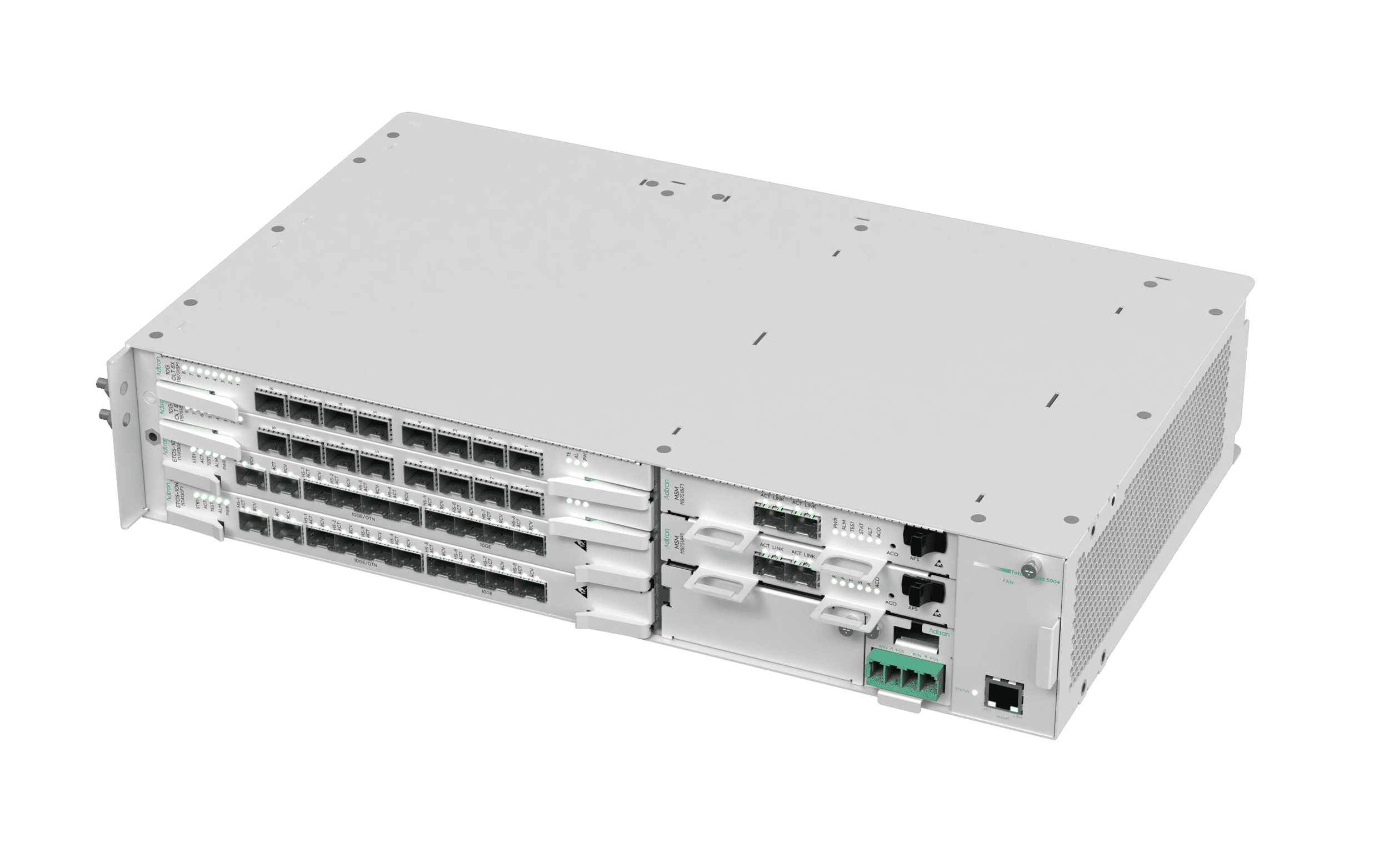

TA5004 – The Adtran  Total Access 5004 (TA5004) is a compact 10Gbit/s fiber access platform that simplifies high-capacity broadband services delivery into MDUs, emerging neighborhoods, remote cabinets and rural locations. Part number 1187004F1.

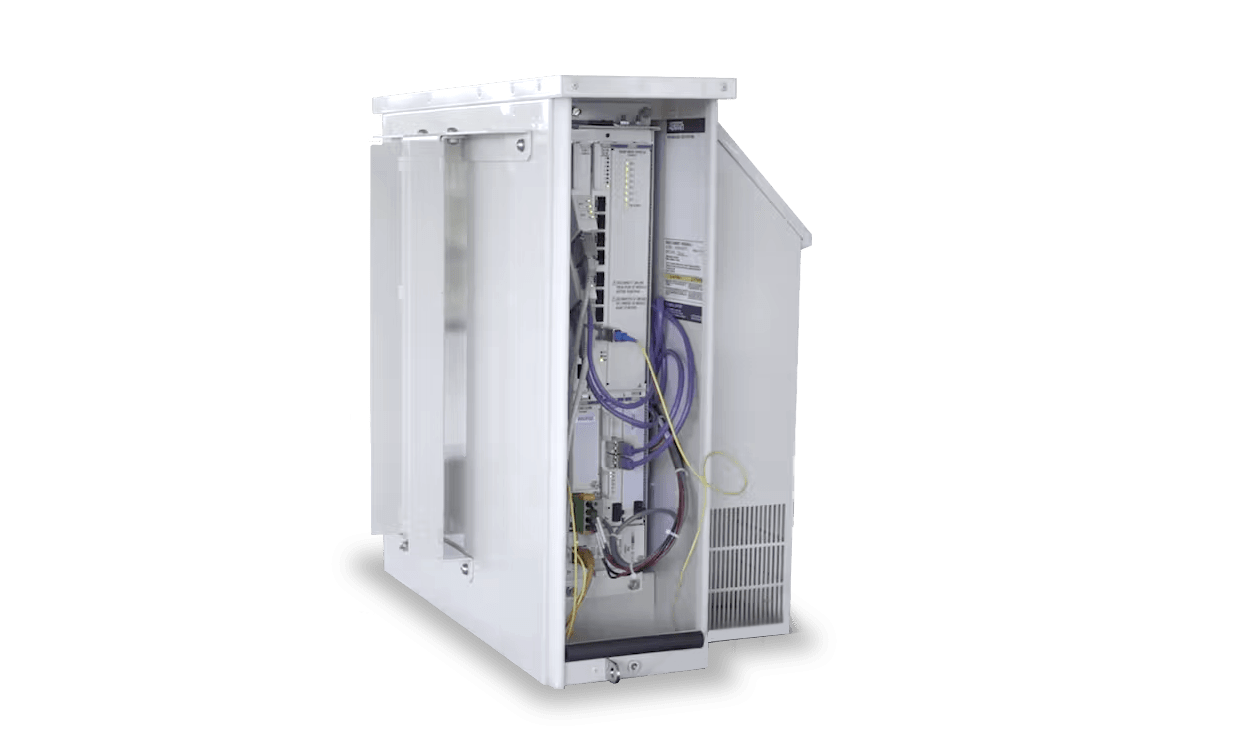

TA5004 Micro Cabinet –The Adtran Total Access 5004 Micro Cabinet is the industry’s most flexible, modular fiber access solution for rural and low-density broadband service delivery. The TA5004 supports up to 2,048 GPON or XGS-PON subscribers to serve residential and business subscribers. The system also supports up to 96 VDSL2 vectored subscribers for FTTN long-range copper applications. Part number 4192M54F1x.
